Surface Mounted Light Box Stretch Ceiling with 6500K LED Lighting – Car Wash in Dubai
Bright 6500K surface mounted light box stretch ceiling in a Dubai car wash, designed to deliver maximum visibility, eliminate shadows and enhance professional detailing quality. Clean, modern and highly functional lighting solution.
Project Overview
This project features a surface mounted light box with a translucent stretch ceiling membrane installed in a professional car wash facility in Dubai.
The goal was to create a powerful, clean, and highly uniform lighting solution that improves visibility during washing and detailing processes. In car wash environments, lighting plays a critical role in detecting dirt, water spots, and surface imperfections. The ceiling also needed to be visually clean, modern, and easy to maintain.
A 6500K daylight white lighting system was selected to provide maximum brightness and crisp illumination, ensuring excellent visibility across all working areas.
Key Project Details
• Ceiling type: Surface mounted light box with stretch ceiling membrane
• Installation type: Surface mounted (directly on ceiling)
• Lighting system: LED backlighting
• Light temperature: 6500K (daylight white)
• Control system: On / Off
• Light distribution: Uniform, diffused, shadow-free
• Application: Car wash / detailing area
• Location: Dubai, UAE
High-Performance Lighting for Car Wash Facilities
Car wash and detailing spaces require bright and evenly distributed lighting to achieve professional results. Standard lighting often creates shadows and uneven illumination, making it difficult to properly clean and inspect vehicle surfaces.
The surface mounted light box transforms the ceiling into a large illuminated panel, delivering consistent and shadow-free light across the entire workspace. This significantly improves working conditions and increases efficiency.
Why 6500K Lighting is Ideal for Car Wash Applications
6500K daylight lighting provides a cool, bright white tone that closely replicates natural daylight. This type of lighting is especially effective in car wash environments because it:
• Enhances visibility of dirt, stains, and water marks
• Improves inspection of paintwork and surface quality
• Provides a clean and professional appearance
• Increases overall brightness of the workspace
Surface Mounted Solution for Fast Installation
The surface mounted system is ideal for locations where recessed installation is not possible. It allows quick installation without major structural modifications while still delivering a premium lighting result.
This approach reduces installation time and cost while maintaining a high-end architectural appearance.
Installation Process

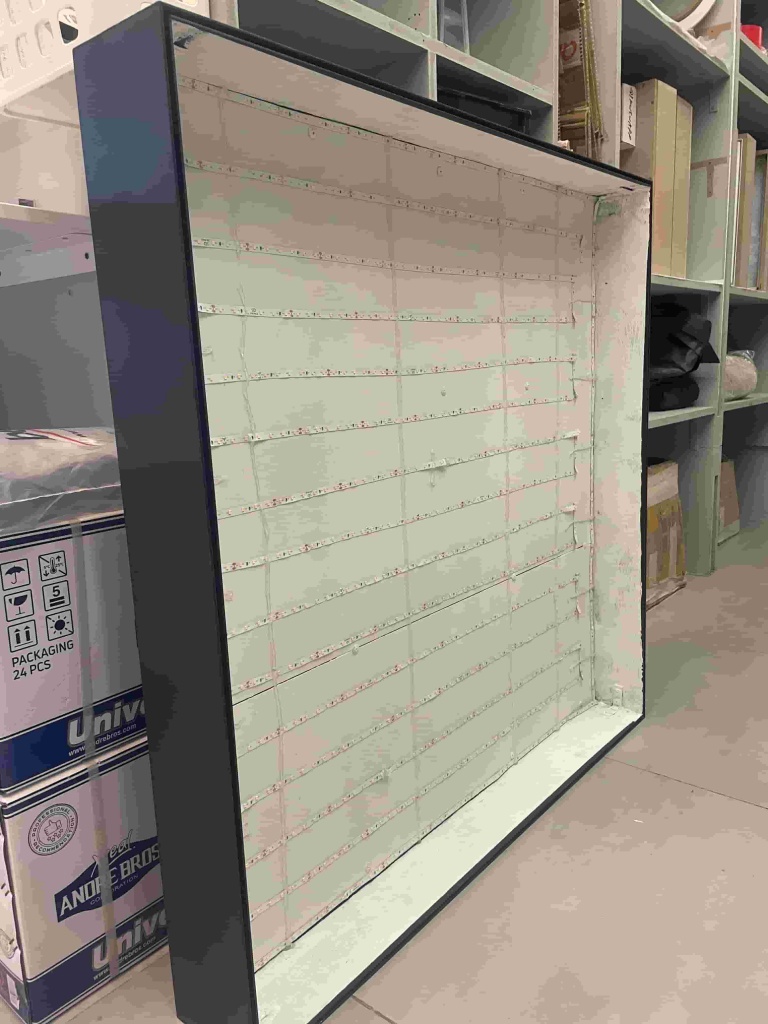

The structural frame of the light box was installed directly onto the ceiling surface. High-output LED strips were mounted inside the frame with optimized spacing to ensure even light distribution.
Electrical connections and drivers were installed and tested to confirm consistent brightness and reliable operation.
A translucent stretch ceiling membrane was installed over the light box frame. The membrane diffuses the LED light, creating a smooth, seamless illuminated surface.
The final result is a bright, uniform ceiling with no visible light sources, delivering a clean and modern finish ideal for commercial environments.
Result

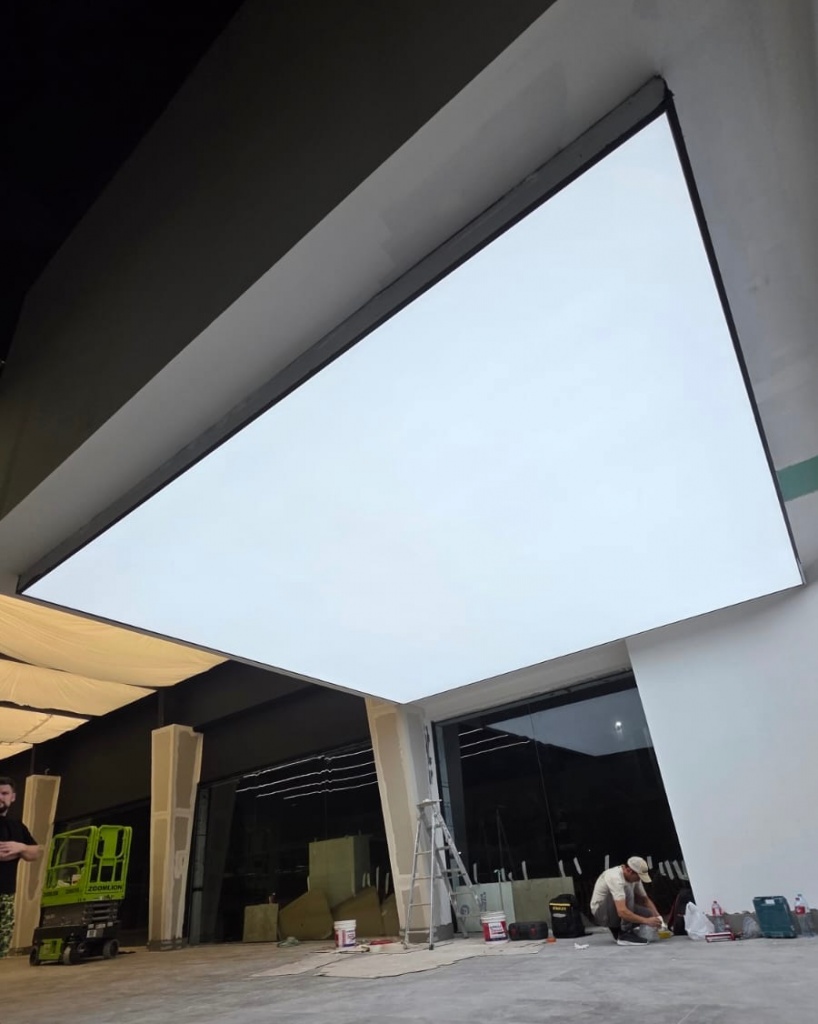

The completed surface mounted light box stretch ceiling delivers powerful, uniform, and visually clean lighting tailored for car wash operations. The 6500K lighting enhances visibility, improves workflow efficiency, and elevates the overall appearance of the space.
This project demonstrates how stretch ceiling light box systems can significantly improve both functionality and design in automotive service environments.
