Translucent Stretch Ceiling with Regular On/Off Lighting – Project in Dubai Mall
Translucent stretch ceiling with 4000K neutral white backlighting installed inside a 100 mm gypsum bulkhead at Dubai Mall. 24V LED system with 8 cm spacing ensures perfectly uniform illumination with simple ON/OFF control.
We successfully completed a translucent stretch ceiling project with integrated LED backlighting inside a gypsum bulkhead at Dubai Mall, Dubai, UAE. The system features clean and uniform neutral white illumination (4000K) with a simple ON/OFF control system, designed specifically for commercial use.
This project was completed in three main stages: preparation of the gypsum box, LED installation, and final membrane installation.

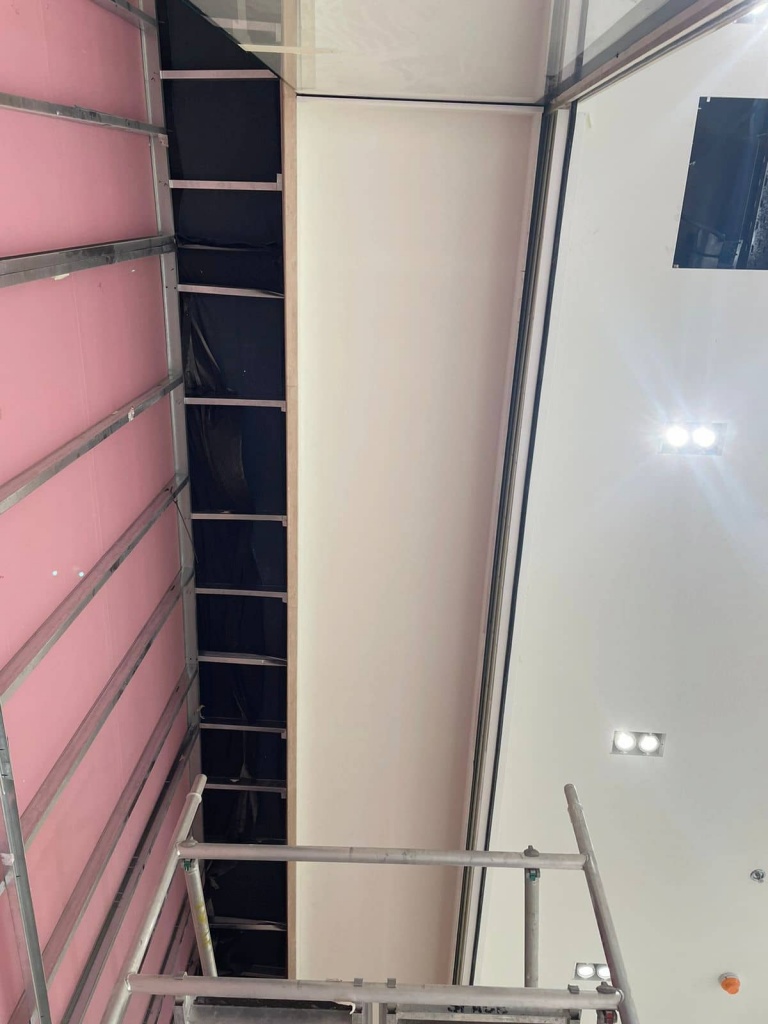

At the first stage, the gypsum bulkhead (light box) was fully constructed and prepared for LED integration.
Technical specifications:
• Bulkhead depth: 100 mm
• Internal space designed for proper light diffusion
• Smooth internal finishing to avoid shadow lines
• Structure prepared for 24V LED strip installation
The 100 mm depth is essential to ensure even light distribution and proper diffusion once the translucent membrane is installed. Correct preparation at this stage guarantees a professional final result.

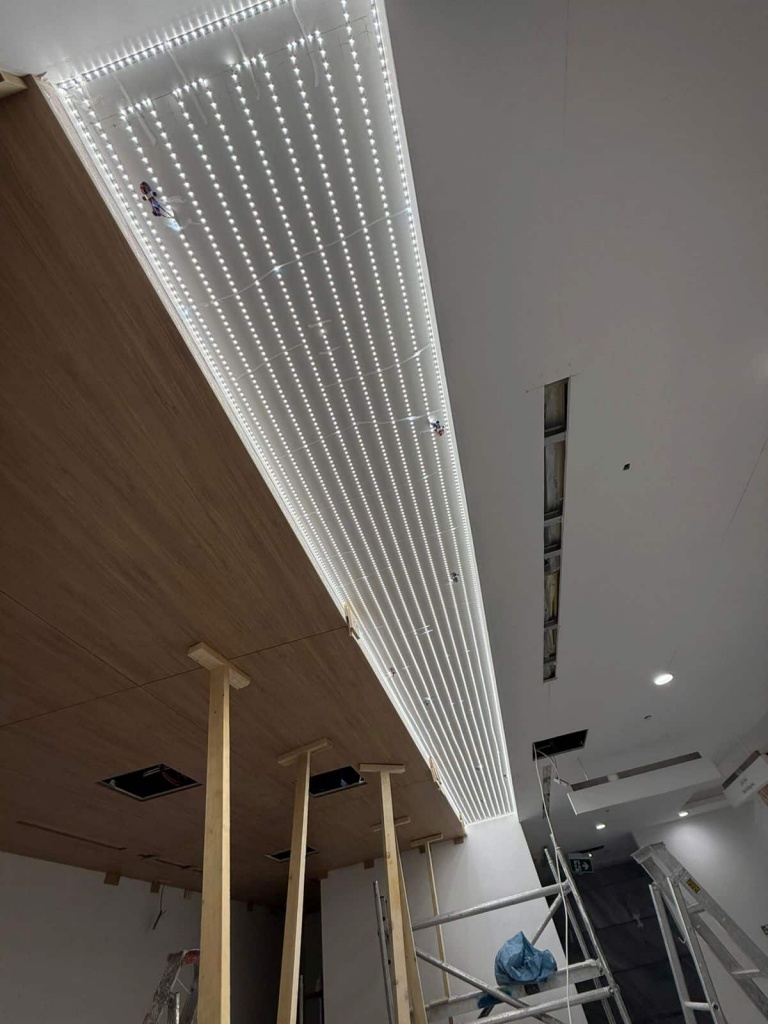

After completing the gypsum preparation, we installed high-quality 24V LED strips inside the bulkhead.
Lighting specifications:
• Voltage: 24V
• Color temperature: 4000K (Neutral White)
• Distance between LED strips: 8 cm
• Control system: Standard ON/OFF switch
The 8 cm spacing ensures perfectly uniform illumination without visible hot spots or shadow zones. Using a 24V system provides better voltage stability across longer distances and minimizes brightness drop, which is especially important in commercial environments.
The 4000K neutral white temperature was selected to create a balanced and natural lighting atmosphere, ideal for retail and shopping mall interiors.

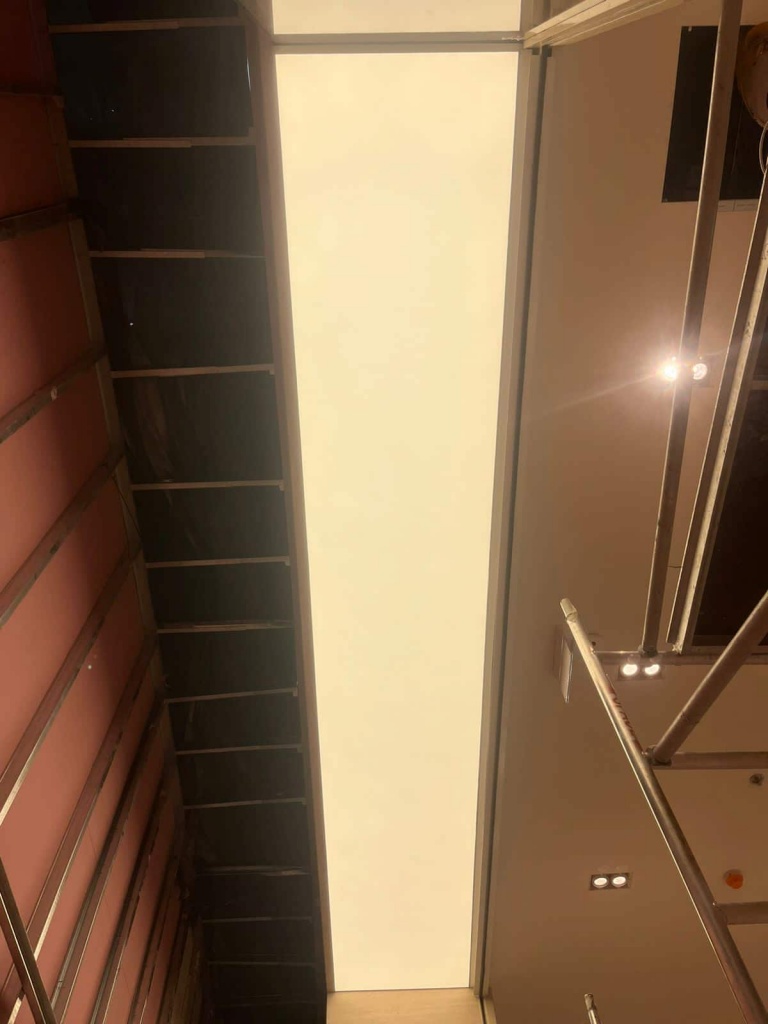

At the final stage, the translucent stretch membrane was installed, transforming the construction into a seamless illuminated ceiling surface.
Final result:
• Soft and evenly distributed 4000K light
• No visible LED dots
• Clean and modern architectural look
• Simple and reliable ON/OFF operation
• Ideal solution for commercial spaces
The finished ceiling provides a smooth luminous surface that enhances the interior design while delivering efficient and practical lighting.
Project Summary
Location: Dubai Mall, Dubai, UAE
Lighting type: Translucent stretch ceiling with backlight
Color temperature: 4000K Neutral White
Voltage: 24V
LED spacing: 8 cm
Bulkhead depth: 100 mm
Control system: Regular ON/OFF
This project demonstrates how proper technical planning and precise LED layout result in a perfectly uniform illuminated ceiling suitable for premium commercial environments.
If you are planning a backlit stretch ceiling project in Dubai, our team provides full technical design, supply, and installation services tailored to your requirements.
If you are planning a hospital, clinic, or commercial lighting project in Dubai, contact our team for a customized translucent stretch ceiling solution.
Get Translucent Stretch Ceiling Cost Estimate
Send your drawings (PDF/DWG) or ceiling dimensions — we’ll calculate LED layout, lighting quantity, and installation cost for Dubai & UAE projects.
